SS 304 Dutch Wire Mesh 14x88Mesh X 0.50x0.32MM 1x30M

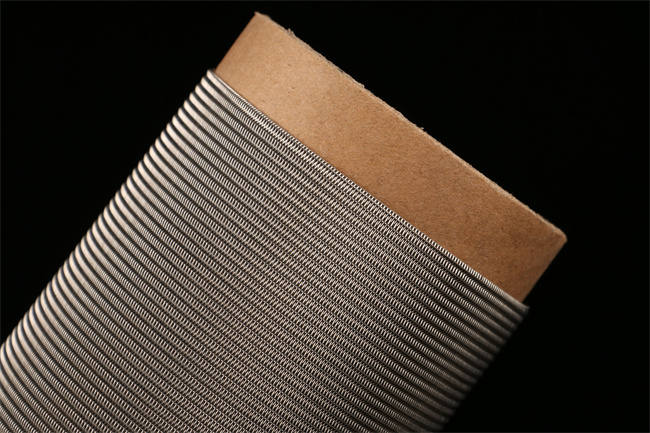

Stainless Steel Dutch Wire Mesh


High-Quality Stainless-Steel Dutch Wire Mesh for Sieving Mesh SS 304 with size 14x88Mesh x0.50x0.32 Wire Día x1mx30m.


What is Dutch Weave Type Wire Mesh?


DUTCH Wire Mesh: The weave consists of different types of twist wires inter-woven with the maximum amount of twill wires, creating good and reliable material。There is a high filtering standard and high-performance load resistance to plain Dutch. Another kind of weave with higher fabric cables than the twisted wires is the Natural Dutch.

SS 304 Dutch Wire Mesh 14x88Mesh X 0.50x0.32MM 1x30M


Plain Weave/  Twilled Dutch Weave / Reverse Dutch Weave

Use of Dutch Weave :The primary use of Dutch Plain Wire Mesh is filtration. The use of fine mesh in the weave and a fine mesh with relatively smaller wire in the fill is provided by Dutch Weave. With very fine openings, this weave results in greater intensity and is mainly used as a wire mesh.

Stainless steel Dutch wire mesh has outstanding corrosion, alkali, high-pressure resistance  and it is used for steel screen machine filtration, sewage treatment, Oil & Gas.

Click on a photo for a larger view:
